PRODUCTS

VAPORPAK®

DATA SHEET and USERS MANUAL

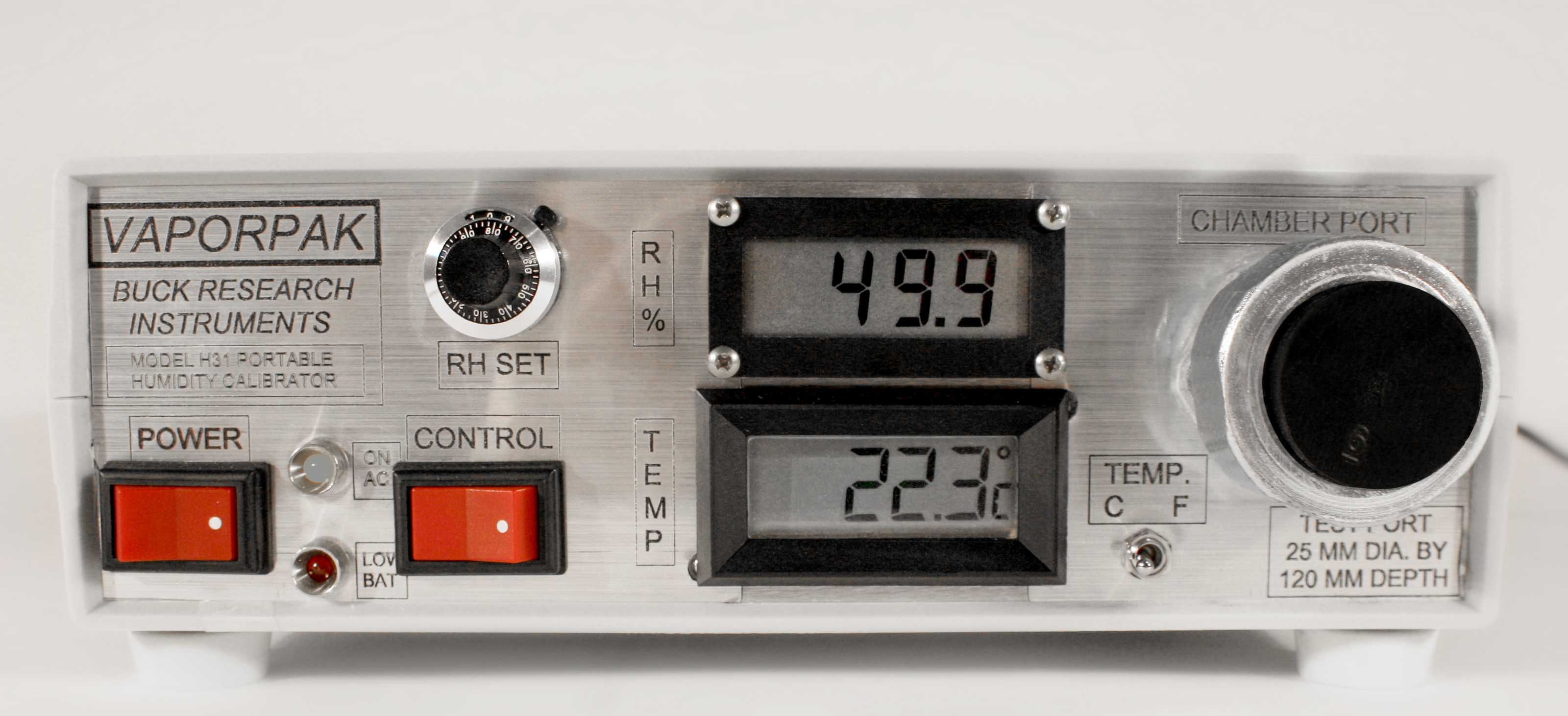

VAPORPAK photo

The VAPORPAK® is a battery-powered, portable humidity generator for calibrating a wide variety of humidity sensors in-situ. It is extremely accurate and stable over a wide range of temperatures and humidities. It has numerous options for a wide variety of calibration applications.

Range of Humidity Units Generated

RH: 11 to 97%RH with ±1.5%RH accuracy from 20-90%

Specifications

Stabilty of 0.2%RH

Temperature range: 20 – 32°C

Port size: 1″ diameter x 4.5″ deep

Set point resolution: 0.1%RH, 0.1°C

Power requirement: 5 Watts @ 6 VDC, internal NiMHs with external AC adapter / charger

Dimensions: 3.75Hx10Wx10D inches, wt 4.6 lbs

*Dependent upon ambient temperature
