VAPORTRON®

DATA SHEET and USERS MANUAL

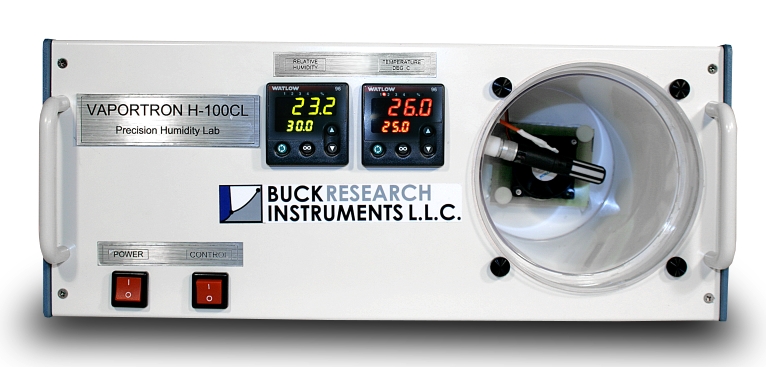

Vaportron front

VAPORTRON® H-100BL/H-100CL

The Vaportron is a humidity generator for calibrating a wide variety of humidity sensors. It is extremely accurate and stable over a wide range of temperatures and humidities. It has numerous options for a wide variety of calibration applications.

Range of Humidity Units Generated

RH: 3 to 95%RH with ±1.5%RH accuracy from 20-90%

Dew Point: -20°C to 40°C Dew Point with accuracy ±0.2°C

Absolute Hum: 0.7 to 35 grams / cubic meter

Specifications

Stabilty of 0.2%RH

Large 2 – Liter work space

Port size: 5″ diameter x 7″ deep

Set point resolution: 0.1%RH, 0.1°C

Air cooled; orientation: any in 3 axes

Power Requirement: 50 Watts, 120 / 240 VAC, 50 – 60 Hz

Dimensions: 8Hx17Wx13D inches, wt 18 lbs

Padded carrying case included

Built–in analog interface included

Serial computer control option
